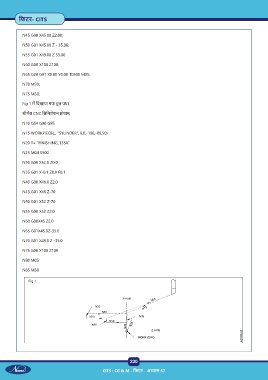

िफटर- CITS

N45 G00 X45.00 Z2.00;

N50 G01 X45.00 Z - 35.00;
N55 G01 X49.00 Z 35.00

N60 G00 X100 Z100;

N65 G28 G91 X0.00 Y0.00 T0500 M05;
N70 M90;

N75 M30;

Fig 1 म िदखाया गया टू ल पथ।

सीम स CNC िसिमलेशन ो ाम,
N10 G54 G90 G95

N15 WORKPIECE(,,, “SYLINDER”, 0,0,-100,-80,50)

N20 T= “FINISHING_T35A”

N25 M04 S500
N30 G00 X52.0 Z0.0

N35 G01 X-0.1 Z0.0 F0.1

N40 G00 X48.0 Z2.0
N45 G01 X48 Z-70

N50 G01 X52 Z-70

N55 G00 X52 Z2.0
N60 G00X45 Z2.0

N65 G01X45.0Z-35.0

N70 G01 X49.0 Z -35.0
N75 G00 X100 Z100

N80 M05

N85 M30

Fig 1

230
